ResidualEvolution.hpp File Reference

Normative values used by self-dual residual-tree evolution. More...

#include "../../utils/Altitude.hpp"
#include "../../utils/Common.hpp"
#include <cstddef>
#include <limits>
#include <set>
#include <span>
#include <stdexcept>
#include <utility>
#include <vector>

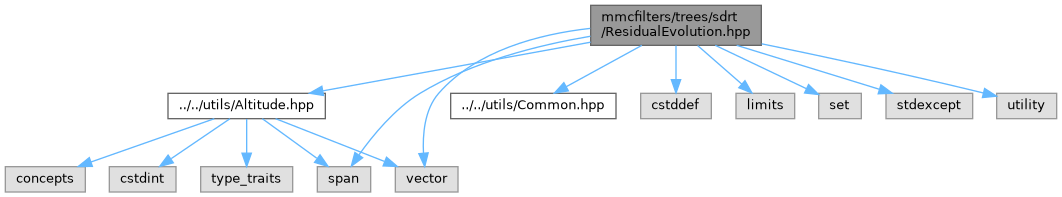

Include dependency graph for ResidualEvolution.hpp:

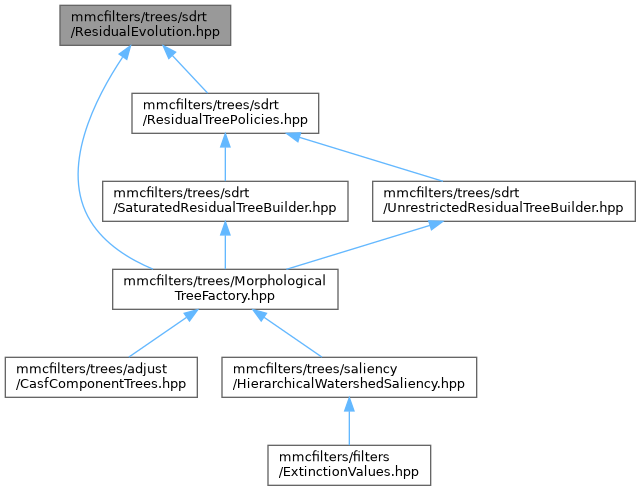

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
class	mmcfilters::sdrt::SpatialOrder
	Total order over the pixels of one construction domain. More...
class	mmcfilters::sdrt::RowMajorSpatialOrder
	Dense row-major spatial order used by default. More...
struct	mmcfilters::sdrt::SelfDualResidualKey
	Contrast-invariant key of one current residual candidate. More...
class	mmcfilters::sdrt::SelfDualResidualOrder
	Strict order induced by (supportCardinality, spatialMinimum). More...
class	mmcfilters::sdrt::SelfDualResidualSchedule
	Selects the next residual candidate from the canonical self-dual order. More...
struct	mmcfilters::sdrt::ResidualCandidate< T >
	Immutable view of an eligible residual candidate before leveling. More...
struct	mmcfilters::sdrt::ResidualEvent< T >
	Immutable record captured immediately before one elementary leveling. More...

Enumerations
enum class	mmcfilters::sdrt::Polarity { Maximum , Minimum }
	Polarity of a regional extremum in synchronized residual evolution. More...

Functions
template<AltitudeValue T>
ResidualEvent< T >	mmcfilters::sdrt::recordResidualEvent (std::size_t eventIndex, const ResidualCandidate< T > &candidate)
	Records the immutable event associated with one prepared candidate.

Detailed Description

Normative values used by self-dual residual-tree evolution.

Definition in file ResidualEvolution.hpp.

Enumeration Type Documentation

Polarity

enum class mmcfilters::sdrt::Polarity

strong

Polarity of a regional extremum in synchronized residual evolution.

Definition at line 22 of file ResidualEvolution.hpp.

Function Documentation

recordResidualEvent()

template<AltitudeValue T>

ResidualEvent< T > mmcfilters::sdrt::recordResidualEvent	(	std::size_t	eventIndex,
		const ResidualCandidate< T > &	candidate
	)

Records the immutable event associated with one prepared candidate.

Parameters

eventIndex	Zero-based chronological index.
candidate	Eligible candidate observed before mutation.

Returns

Complete residual event captured from the pre-leveling state.

Definition at line 257 of file ResidualEvolution.hpp.
